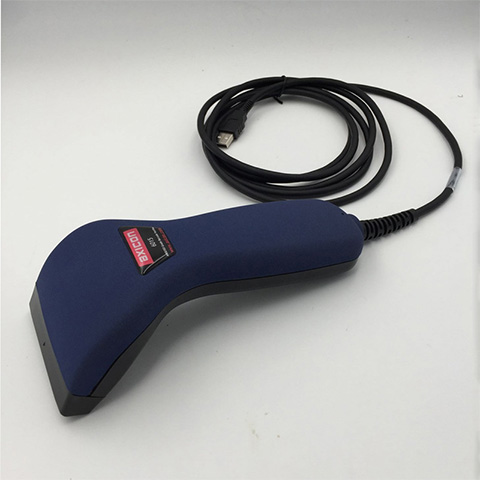

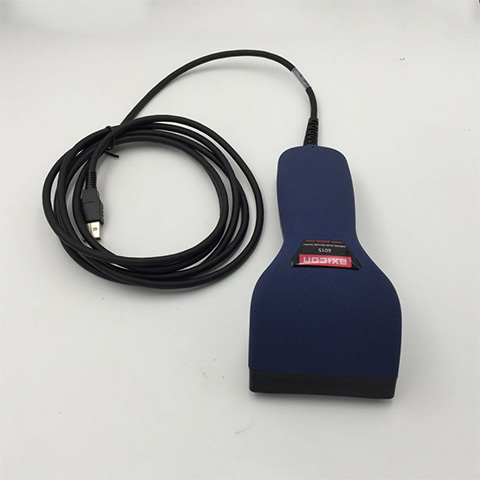

AXICON PC-6015 series one-dimensional code detector barcode detector

The AXICON PC-6000 series barcode detector is a new type of barcode detector designed by the British company AXICON in accordance with the latest ISO/CEN/ANSI standards. The detector consists of two parts: hardware and software. The hardware part mainly consists of a CCD with a large scanning window, and the software operating system is Windows.

The maximum reading width of the detector is 72mm, which can fully meet the CEN ClassA detection standard. The detector is easy to use and its non-contact design can avoid user errors and damage to the tested object, providing you with accurate barcode detection results.

You only need to install the software on your PC, plug in the power supply of the detector, and you will receive the detection result of the quality level of the tested barcode symbol.

Free software upgrade ensures that the AXICON PC-6000 series barcode detector maintains a leading level.

Product Features

（1）Implement ISO/CEN/ANSI testing standards

（2）Implement traditional testing standards

（3）CENClassA testing standard

（4）Automatic symbol correction

（5）Automatically select aperture variables (5mil, 6mil, 10mil, and 20mil)

（6）Static reflectance meter

（7）Display bar width

（8）UCC/EAN-128 Data Content Detection Options

（9）Product search options

（10）Single/empty analysis

Series products

PC-6000: Standard Model

PC-6005: Product Search Options - This software can connect to a database. When scanning barcodes, quality control information can be obtained while obtaining information related to the barcode.

PC-6010: UCC/EAN-128 Data Content Check - Provide users with application identifier descriptions, then verify the following information, check for possible structures and contained errors (such as date errors, check for numerical errors, incorrect field lengths, etc.).CSV file storage - Analysis data can be saved to disk in the form of a c.s.v. text file, allowing users to use Excel, Lotus, or other Windows spreadsheet programs for analysis. If necessary, all data can be automatically recorded.

PC-6015: All the above performance.

software documentation

▲Using Window ™ Basic program - free upgrade. The latest software can be downloaded from www.axicon.com.

▲Detection code system: EAN-8/EAN-13 and UPC-A/UPC-E, ITF/Case Code, Code39, Code 39, Code 39 ASCII, Codabar, Code 128, UCC/EAN-128, RSS (all symbols), Italian Pharmacode and HIBC.

▲Detection parameters: Analysis of all ISO/CEN/ANSI parameters. All traditional parameter analysis - PCS, strip width analysis, etc

▲Display screen: instruction screen, summary and detailed result screen, pass/fail screen, traditional analysis result screen, etc

▲Data storage: Detecting data storage and duplication can make data reproduction easier for remote analysis.

▲Calibration status record: Record the date and time when the hardware was calibrated. This is particularly important for ISO9000 enterprise related records.

▲Users can set parameters such as time and date (via Windows), reflectance calibration, pass/fail level, and set multiple scan averages.

▲Error message prompt: Alarm sound prompt. Users can change the color of the alarm prompt, check for numerical errors, structural errors, blank area errors, and refer to decoding algorithm errors.

Hardware Description

Size: 165 x 75 (50) x 55 mm, maximum scanning width 72mm (including blank area)

Weight: 250 grams

Interface: USB connection to PC

Detection aperture: Automatically recognize barcode symbols and bar width dimensions (X dimensions), and automatically select detection apertures (5mil, 6mil, 10mil, and 20mil) according to barcode symbol specifications and international standards to obtain accurate detection results.

Scanning light wavelength: 660 nanometers.

General Information

Printing of inspection reports: Inspection reports can be printed using Windows driven printers (including dot matrix, laser, inkjet, or thermal transfer printers). The printing size of the inspection report will be automatically adjusted according to the size of the output paper and can be printed on adhesive labels.

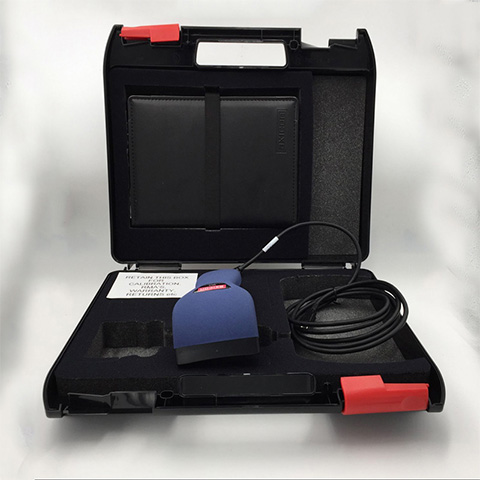

Standard accessories: suitcase, host, CD, calibration board, and instructions for use.

(The bracket shown in the picture is not included in the standard configuration)

System requirement: Windows XP or higher version.

Environmental requirements:

Environmental temperature: 23 ℃± 5 ℃

Relative humidity: 30% to 70%

Lighting source: Avoid direct exposure to strong light, and the illuminance in the detection work area should not exceed 100 lx.
