Datalogic Matrix 210N Fixed industrial scanner

Product Introduction

Matrix210 is a new 2D barcode reader from DATALOGIC, which has excellent reading performance, ultra small size, and is very easy to use. With innovative optical features, advanced software functionality, USB, and a complete serial communication interface, Matrix210 is the best compact industrial image code reader for applications with limited installation space. Matrix210 is an upgraded version of Matrix200, with more powerful features, higher performance, and an optional model with Ethernet interface

Matrix-210 barcode reading product is a truly industrial grade Datalogic barcode scanner

Based on high-speed array CCD image technology, omnidirectional recognition of all 1D and 2D barcodes

Integrated auxiliary lighting, image acquisition, image refinement

Barcode automatic learning function, no need for computer, one click quick setting

Barcode Quality Control (AIM Standard)

The decoding software and communication interface are highly integrated into one

Scanning speed up to 60 frames per second, object barcode movement speed can exceed 5 meters per second

There are four models to choose from, providing different scanning resolutions

Typical applications:

Small size in-process control

Tracking of Printed Circuit Board Production Process

Semiconductor Manufacturing

Document and letter processing

Biochemical analysis equipment

Small size product or pharmaceutical packaging equipment

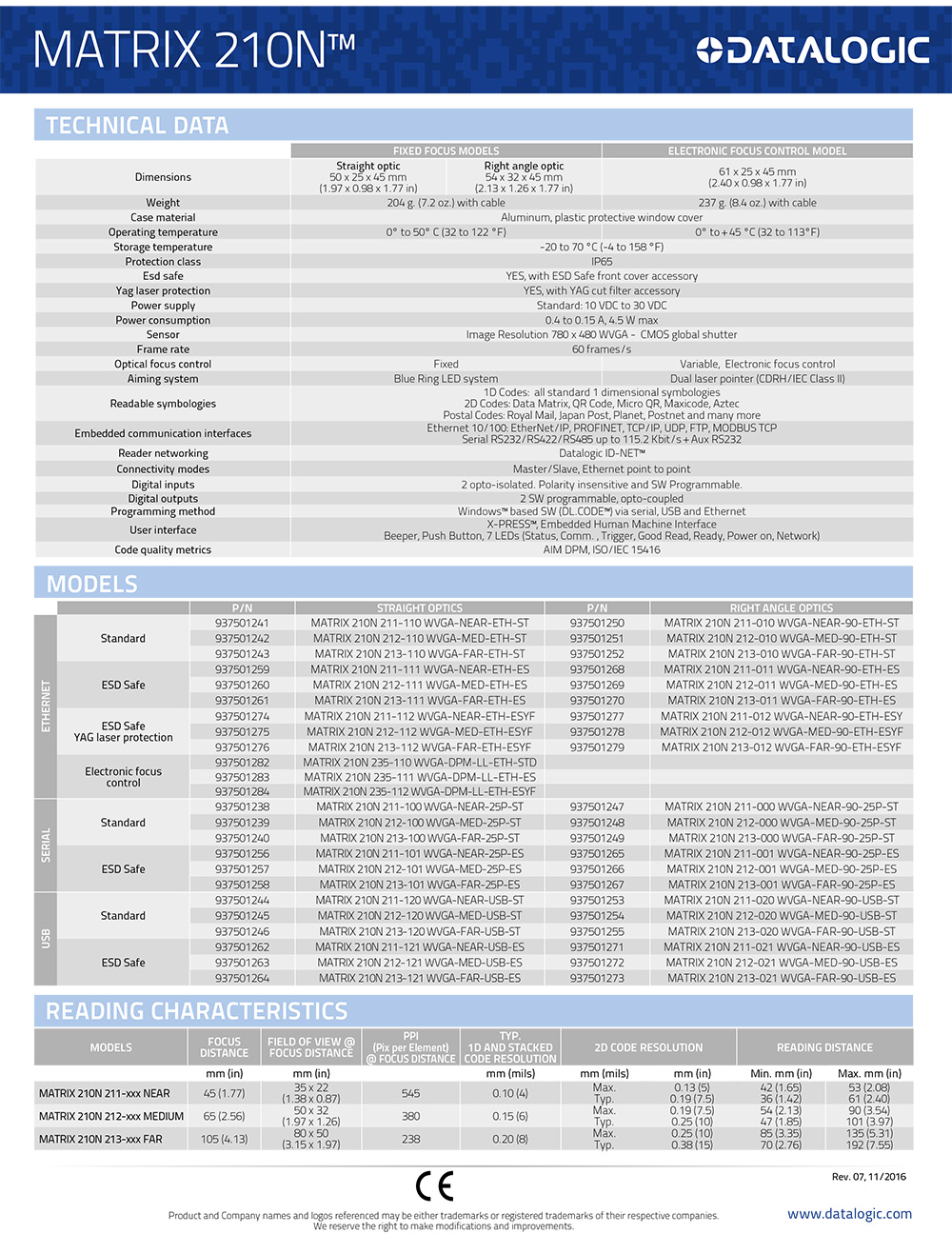

Parameter characteristics:

MATRIX 210 21X-1XX MATRIX 210 21X-0XX

    ·Size 50 * 25 * 45mm 54 * 32 * 45mm

    ·Maximum power of 3.6W; 3.0W typical 2.5W maximum; 2.0W Typical

   ·Weight: 60g (without cable)

   ·Storage temperature: -20~70 ℃

   ·Voltage: 10 to 30 VDC 5VDC

   ·Operating temperature: 0-50 ℃ (32-122F)

   ·Humidity: 90% without condensation

   ·Protection level: IP65

   ·Interface: serial, master/slave, multiplexer, USB point-to-point

   ·Communication method RS232+RS232/RS422/RS485 up to 115.2 Kbit/s ID-NET port speed up to 1 Mbps USB 2.0 speed up to 921.6 Kbit/s

   ·Programming method: X-PRESS external button, based on Windows software, via serial port or Ethernet

   ·Decoding: 1D and Stacked Codes: IL 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode, GS1 DATABAR (RSS) family, and more

   ·2D: Data Matrix, QR Code, Maxicode, Aztec, Microglyph

   ·Postal codes such as Royal Mail, Japan Post, Planet, Postnet, etc.

   ·Decoding performance: High resolution optical sensor can read 3 mil (0.076mm) ultra compact 2D barcodes

Product features:

   Matrix-210 barcode reading product is a truly industrial grade Datalogic barcode scanner

   Based on high-speed array CCD image technology, omnidirectional recognition of all 1D and 2D barcodes

   Integrated auxiliary lighting, image acquisition, image refinement

   Barcode automatic learning function, no need for a computer, one click quick setting

   Barcode Quality Control (AIM Standard)

   The decoding software and communication interface are highly integrated into one

   Scanning speed up to 60 frames per second, object barcode movement speed can exceed 5 meters per second

   There are four models to choose from, providing different scanning resolutions
